CW 50 CC Capped Curtain Wall System

Product Features

- Classic capped façade system.
- 50 mm load-bearing profile width section.
- Vertical load-bearing profile with depth sections ranging from 60 to 160 mm.
- Glass thickness options ranging from 8 to 45 mm.
- PVC or PA thermal barrier.
- Compatible with all Euro-type accessories.
- Electrostatic powder-coated or anodized surface finish.

Advantages

- High performance in thermal, acoustic, water, and air insulation.
- A wide range of architectural detail alternatives.
- Lightweight structure and easy production.
- Aesthetic interior and exterior appearance.
- Different design options with various external cover cap types.

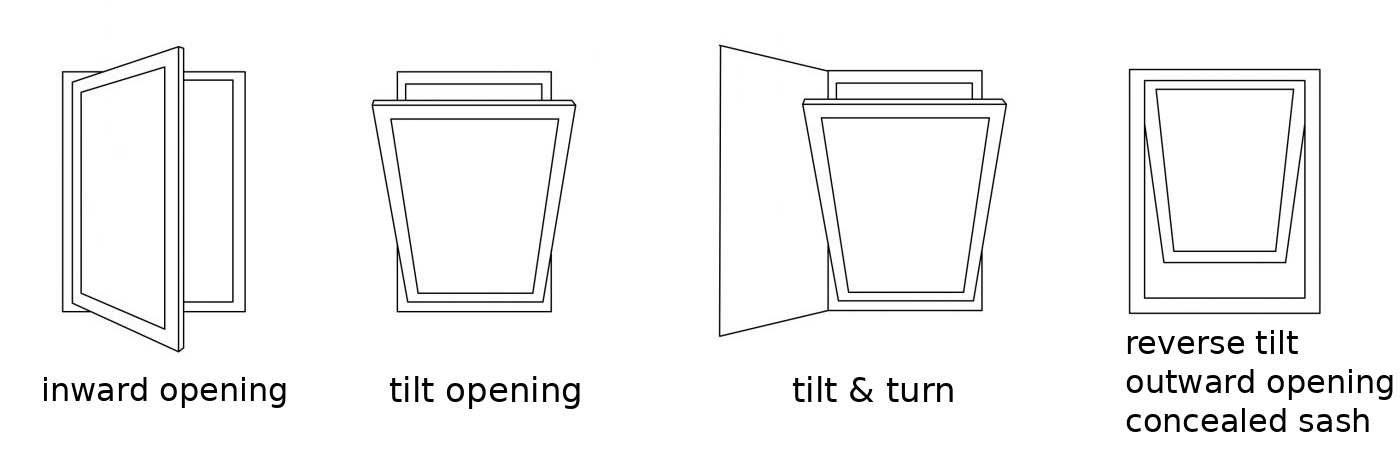

Opening Types

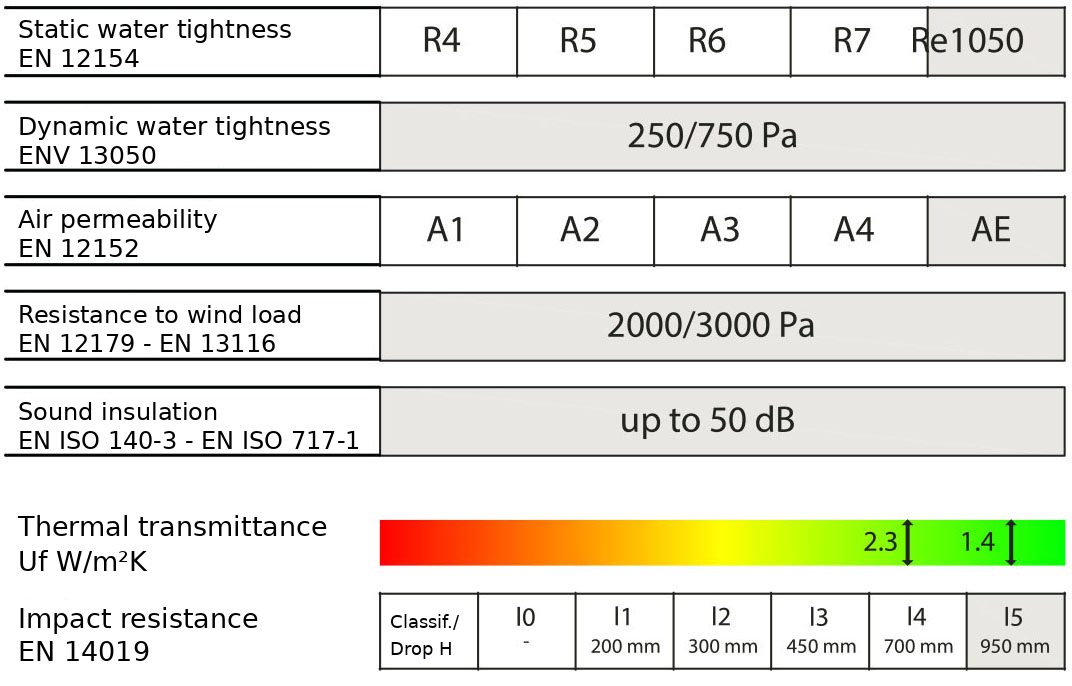

Performance
